$15.00
rj45 pass thru connector for ethernet cat6 cable RJ45 Pass Thru Connectors Modular Plug 100 Plugs per bag for Cat.6 RJ45 design allows the wires to pass through the...
Availability:
Out Of Stock

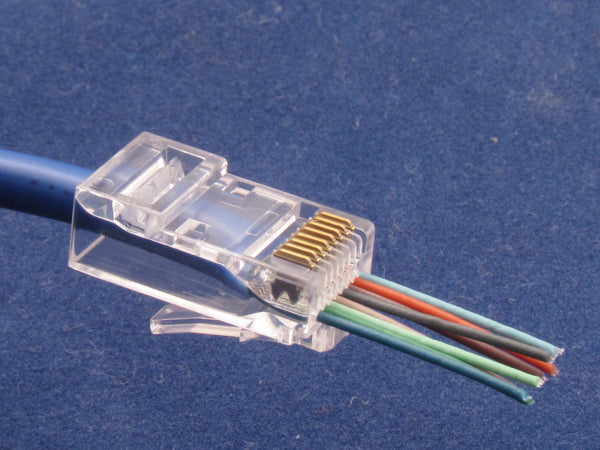

rj45 pass thru connector for ethernet cat6 cable
- RJ45 Pass Thru Connectors Modular Plug 100 Plugs per bag for Cat.6
- RJ45 design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plug.
- Maintaining the twists to the point of termination significantly decreases crosstalk and will increase performance
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
- Category 6 performance per EIA/TIA B.2.
- 8 Pins Network Cable Heads / Plugs. Plugs for UTP Cat6, Cat6 wire solid or stranded Cable.
- Gold plated leads for better data transmitting and higher signal strength
Specs:
An RJ45 pass-through connector is a type of modular connector used to terminate Ethernet cables. It allows for easier and faster installation of Ethernet cables compared to traditional RJ45 connectors.
The pass-through design means that the connector has holes on both sides, allowing the wires to be inserted from one end and pushed out the other. This makes it easier to ensure that each wire is properly seated and in the correct position before crimping the connector onto the cable.
The RJ45 pass-through connector is commonly used in data centers, commercial installations, and home networks. It is compatible with Category 5, 5e, 6, and 6a Ethernet cables.
To use an RJ45 pass-through connector, the cable is first stripped of its outer jacket and untwisted. The individual wires are then inserted into the connector in the correct order and trimmed to the correct length. Finally, the connector is crimped onto the cable using a compatible crimping tool.
Overall, the RJ45 pass-through connector provides a convenient and efficient solution for terminating Ethernet cables in a variety of settings.
